NovaStar H Series Video Splicing Systems
Need one rack system for many video sources, LED outputs or on-screen windows? H Series lets you build the setup around your project.
Showing 1–24 of 34 results
What is a NovaStar H Series system?
Simply put, H Series lets you build one large video system from the cards your project needs.
You start with a rack-mounted chassis, then add the input, output and sending cards your project needs. This makes H Series useful when a fixed set of ports is not enough.
NovaStar H Series model comparison
Choose the chassis first. Then count the video inputs, LED outputs and windows your project needs today, plus room for growth later.
| Model | Catalog price | Availability | Role | Inputs | Outputs | Windows / Layers | Dimensions |
|---|---|---|---|---|---|---|---|
| H2 | $669 | In stock | 4K video wall splicer / multi-window processor, H Series (modular card-based) | 4 slots, up to 16 input channels (hot-swappable) | 2 slots, up to 8 output channels (hot-swappable) | 32 (per card: 16x 2K, 8x dual-link, 4x 4K or 2x 8K) | 482.6 x 529.8 x 88.1 mm; 11 kg net / 12.2 kg gross |
| H5 | $1,468 | In stock | 4K video wall splicer / multi-window processor, H Series (modular card-based) | 10 slots, up to 40 input channels (hot-swappable) | 3 slots, up to 12 output channels (hot-swappable) | 48 (per card: 16x 2K, 8x dual-link, 4x 4K or 2x 8K) | 482.6 x 532.8 x 228.2 mm; 17 kg net / 21.3 kg gross |

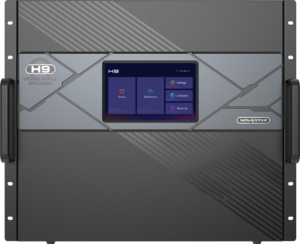

| H9 | $2,184 | In stock | 4K video wall splicer / multi-window processor, H Series (modular card-based) | 15 slots, up to 60 input channels (hot-swappable) | 5 sending-card slots (up to 10 video output cards on Enhanced chassis) | 80 (up to 160 on Enhanced chassis); per card 16x 2K, 8x dual-link, 4x 4K or 2x 8K | 482.6 x 533.0 x 405.8 mm; 27.2 kg net / 35.3 kg gross |
| H20 | $12,281 | In stock | 4K video wall splicer / multi-window processor, H Series (modular card-based) | 40 slots, up to 160 input channels (hot-swappable) | 20 sending-card slots, up to 80 output channels | Up to 320 (16 layers per card) | 482.6 x 533.0 x 905.2 mm; 47.7 kg net (chassis) |
| H15 | $6,438 | In stock | 4K video wall splicer / multi-window processor, H Series (modular card-based) | 30 slots, up to 120 input channels (hot-swappable) | 10 sending-card slots (up to 16 on Enhanced chassis) | Up to 160 (16 layers per card) | 482.6 x 683.0 x 533.0 mm; 41.1 kg net / 53.4 kg gross |

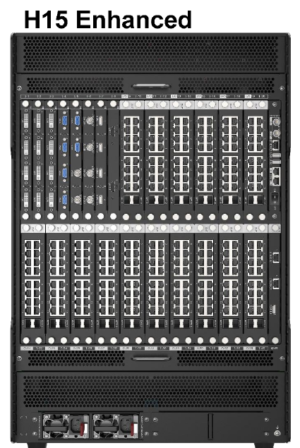

| H15 Enhanced | $8,337 | In stock | 30 | 30 | 160 (Up to 10 layers per card) | 482.6 mm × 683.0 mm × 533.0 mm | |

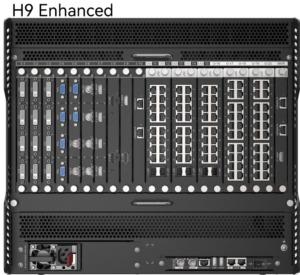

| H9 Enhanced | $2,972 | In stock | 15 | 15 | 482.6 mm × 533.0 mm × 405.8 mm | ||

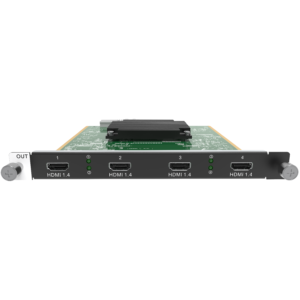

| H_4x HDMI Output Card | $915 | In stock | H Series Video Wall Product |
How do you choose the right NovaStar H Series system?
H Series is built to order. Start with what your system needs to do, then choose the chassis and the cards that make it happen.
List every camera, computer or other video source you need to bring into the system.
Work out how many display outputs the finished system needs to feed the LED wall.
If you need several windows or screens, write down what must appear at the same time.
A chassis with spare card slots can save time and money if the system will grow later.
Complete your LED control system
H Series handles the large video job near the rack. Controllers, receiving cards and fiber equipment carry the finished signal from there to the LED cabinets.
COEX SeriesExplore the integrated platform for coordinated processing, sending and receiving cards.
Receiving CardsMatch the cabinet-side card to the display configuration and control system.

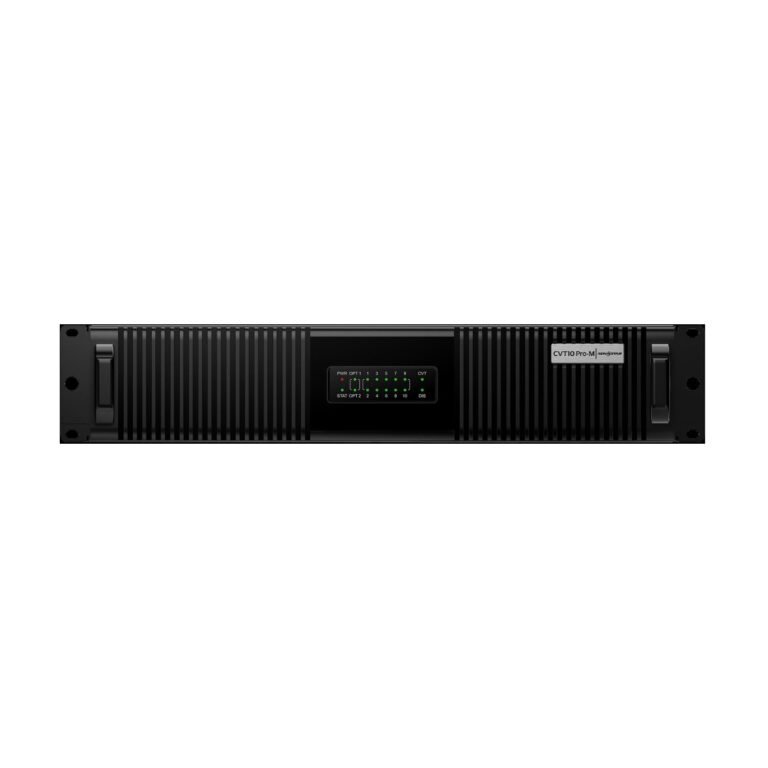

Fiber ConvertersPlan the optical link when distance, routing or redundancy calls for fiber.NovaStar H Series manuals, datasheets and software
Use the chassis and card documents to check the number of slots, the physical rack size and the input or output cards you can add.
NovaStar H Series FAQs
These questions help buyers turn a large video-wall idea into a workable H Series configuration.
Which H Series chassis size should I choose?
Choose the chassis after you count the sources, outputs and screen windows you need. Then add the cards that match those jobs.
How do I estimate a configured H Series system price?
H Series price depends on the chassis and the cards installed in it. Send us the source list and display outputs so we can help outline a configuration.
Can I mix input and output cards in one chassis?
You can add different cards to an H Series chassis, but the cards must fit the chassis and the way the LED system is being used.
What information is needed before quoting an H Series build?
Send the source list, number of LED outputs, screen layout, available rack space and any current control equipment. That is enough to start planning the system.
