NovaStar H_4x HDMI Output Card H Series HDMI Output Card

What is NovaStar H_4x HDMI output card?

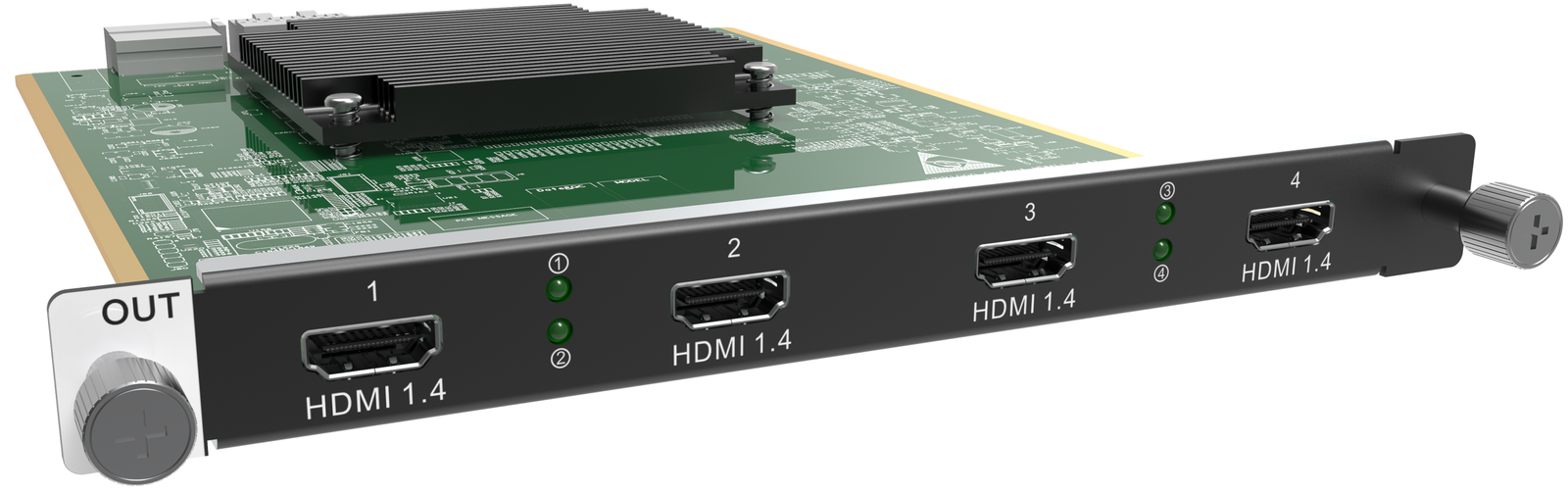

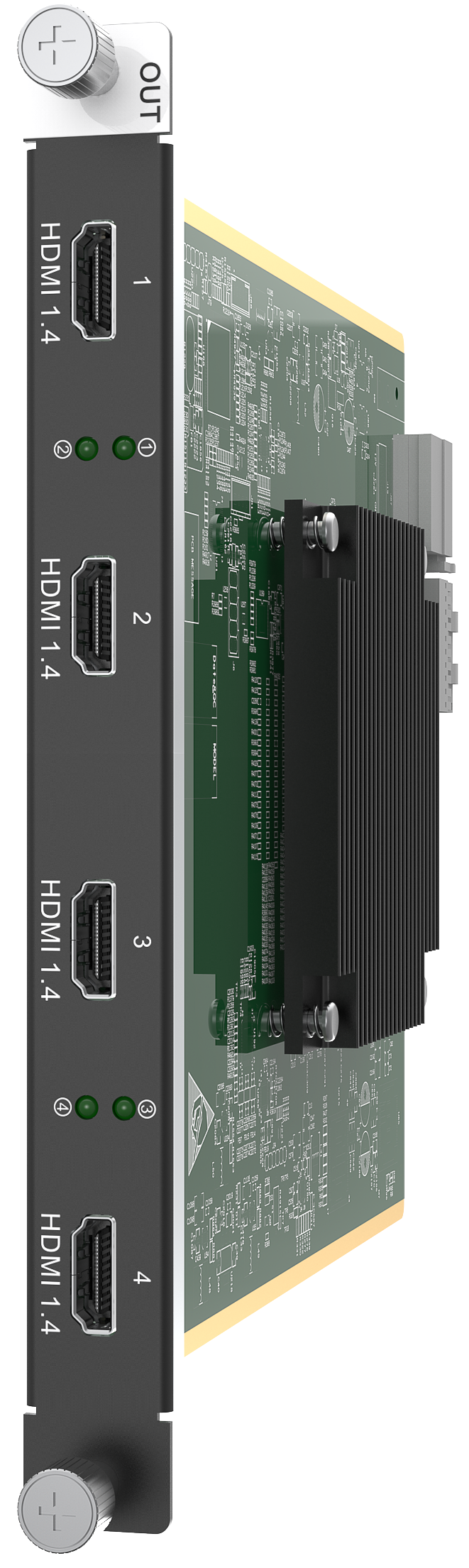

The NovaStar™ H Series 4x HDMI Output Card is a display-output card for a compatible H Series chassis. It works by taking the finished layout from the chassis and carrying it to HDMI displays, projectors, recorders or confidence monitors. The card belongs after the chassis has arranged the source pictures; it gives those planned HDMI endpoints their completed picture.

It is the right kind of card when the system needs display outputs beside the LED wall, not more cabinet data paths. It is not the H Series video wall splicer, and it does not send LED data to receiving cards. The key decision is whether the display plan needs four independent HDMI feeds at the single-link limit, or two higher-resolution primary feeds with a copied output for each.

Request H_4x HDMI Output Card bulk pricing →
For confirmed multi-card H Series or project quantities. Direct checkout remains available when the compatible output-card slot, HDMI endpoint list and operating mode are already confirmed.

NovaStar H_4x HDMI output card key features: four separate displays or two higher-resolution primary displays?

• Keep four display destinations available when the format fits: single-link mode makes all four HDMI connectors usable. It suits a setup with four scheduled confidence displays, operator monitors, projectors or recorders that stay within the documented per-output limit.
• Put two higher-resolution displays first when that matters more: dual-link mode makes HDMI 2 and HDMI 4 the primary paths for up to 4096 × 2160@30 or 3840 × 1080@60. HDMI 1 copies 2, and HDMI 3 copies 4, so the pairings are useful only when duplicated pictures have a real destination.
• Support a planned portrait display: the card supports 90-degree output rotation. That makes it relevant to a vertical endpoint, but rotation changes several system behaviors, so it should be selected with the screen design—not added as a last-minute adjustment.
• Work with professional HDMI signal formats: NovaStar specifies listed 8-bit and 10-bit RGB/YCbCr output formats, 144 Hz output and image mirroring. Confirm the actual display, recorder or projector accepts the selected timing and format.
• Keep display delivery separate from LED cabinet delivery: this card gives the system HDMI endpoints. The LED cabinet route still needs its own selected H Series LED output card.

NovaStar H_4x HDMI output card specifications

These are HDMI display-output limits for the card. They do not describe LED-wall pixel capacity; the compatible chassis, selected LED output card and cabinet design handle the LED side of the system.

NovaStar H_4x HDMI output card output modes: four independent displays or two primary displays with copies?

The mode should follow the display schedule. Single link keeps four outputs separate within its resolution limit. Dual link prioritizes resolution on two primary paths, with the remaining two connectors used as copies—not as extra independent screens.

Selection rule: choose single link for four separate HDMI display paths. Choose dual link only when the design truly needs two higher-resolution primary paths and their duplicates. If a single display needs 4K@60, compare the H_1 HDMI2.0 Output Card below.

What portrait output changes on NovaStar H_4x HDMI output card?

Rotation is useful when a vertical monitor or portrait display is part of the finished experience, but it changes more than orientation. In rotation mode, dual-link output cannot be used; the layer quantity is halved to up to eight SL layers; and the loaded screen does not support image OSD or the fade transition effect.

There is also a card-revision planning rule: NovaStar says a rotation-capable card cannot be used with other card types to load one screen. Even cards of the same type must not mix rotation-capable and non-rotation versions on that screen. Confirm the installed card revision before making a portrait endpoint central to the system design.

NovaStar H_4x HDMI output card vs H_1 HDMI2.0 output card

These cards serve different HDMI display plans. The H_4x provides four independent outputs in single-link mode, or two higher-resolution primary outputs with copies in dual-link mode. The H_1 HDMI2.0 Output Card provides one primary HDMI 2.0 output up to 4096 × 2160@60 or 8192 × 1080@60, plus one copied connector.

NovaStar H_4x HDMI output card applications

These are display-side situations. In each case, the H Series chassis has already built the picture; this card decides how that finished picture reaches external HDMI equipment.

NovaStar H_4x HDMI output card setup and endpoint checks

1. Confirm a compatible H Series chassis and available output-card slot: this is an HDMI display-output card, not a source-input or LED cabinet-output card.
2. Make the mode decision before the cable plan: label HDMI 1–4 as independent single-link paths, or label HDMI 2 and 4 as primary with HDMI 1 and 3 as their copies in dual link.
3. Check each real HDMI endpoint: verify the display, projector, recorder and complete cable path accept the selected output timing and color format before the system is handed over.
4. Treat rotation as a system choice: confirm the loaded screen’s rotation constraints and the installed card revision before building a portrait display plan. Browse the H Series collection for compatible chassis and complementary cards.

NovaStar H_4x HDMI output card manual, specifications and H Series firmware

The specifications PDF is the current official H Series card reference that contains the H_4x HDMI Output Card. The manual, firmware and release notes are labelled as H Series family resources, rather than being presented as card-only files.

NovaStar H_4x HDMI output card FAQs
