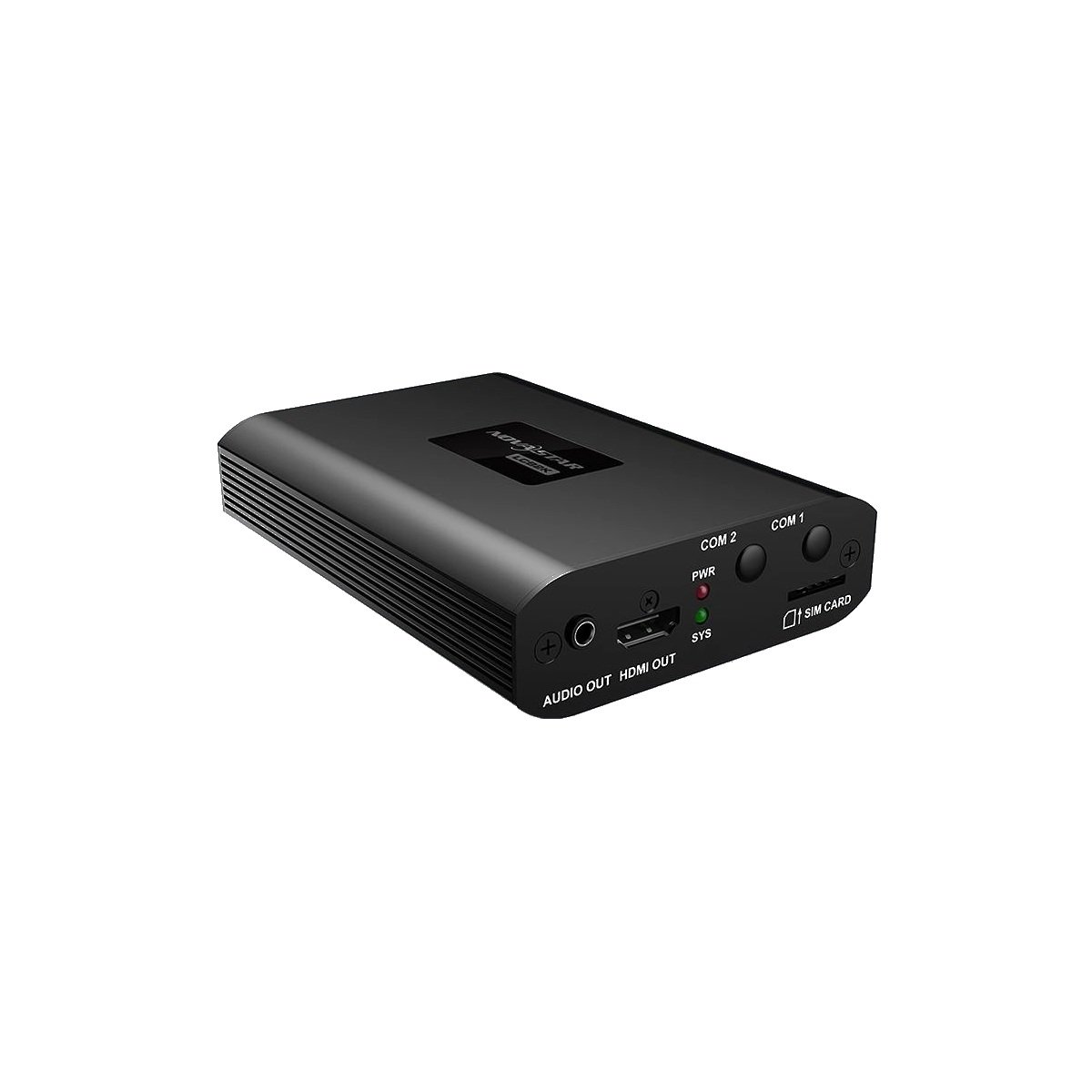

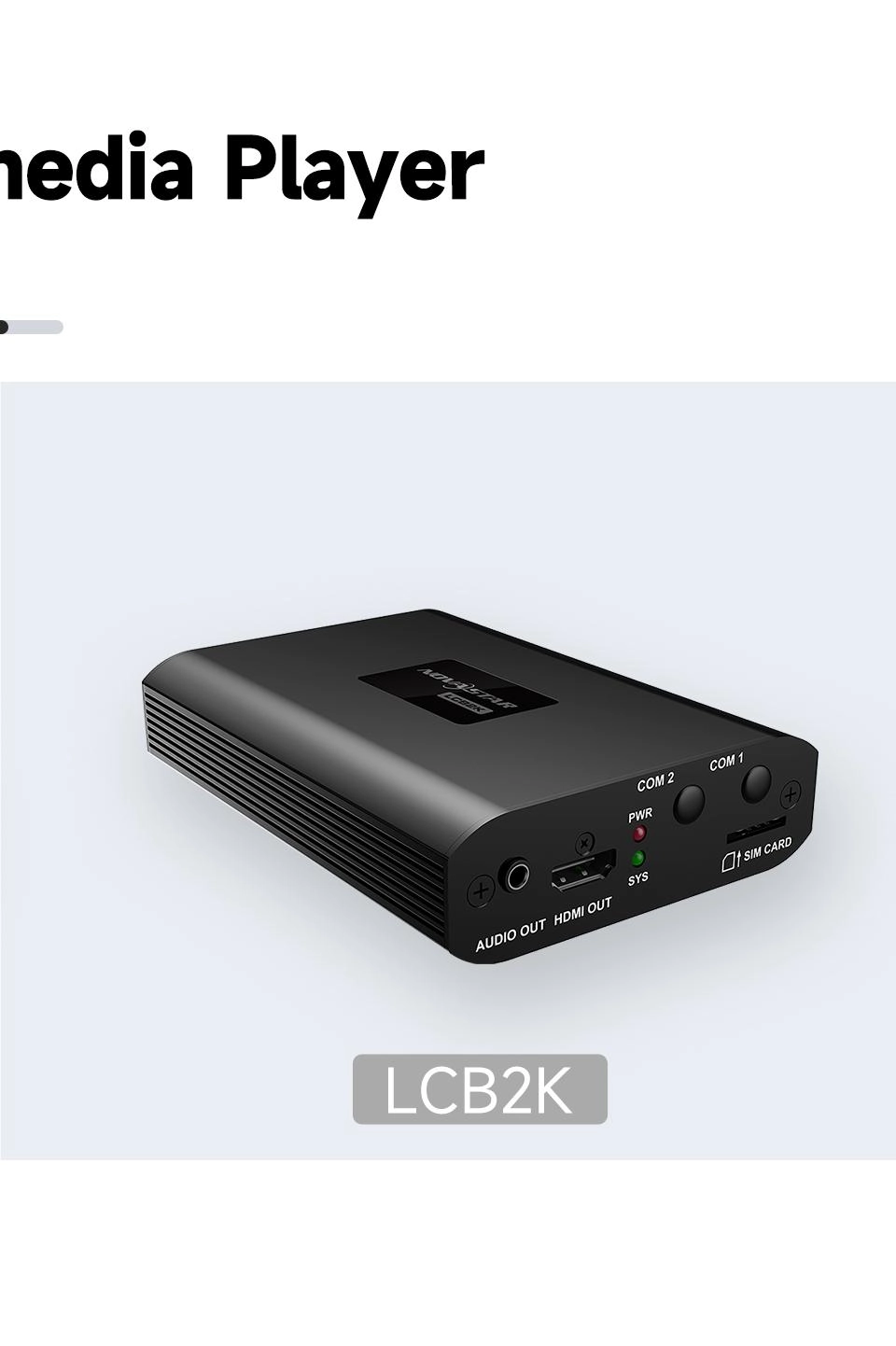

What is the LCB2K?
The LCB2K is an LCD multimedia player created by NovaStar. This multimedia player applies to LCD screens in advertising media, digital signage, commercial display and other fields.
LCB2K Overview
The LCB2K is an LCD multimedia player created by NovaStar. This multimedia player applies to LCD screens in advertising media, digital signage, commercial display and other fields.
LED Control Depot provides US-based presales support for the LCB2K and can confirm model-specific compatibility before ordering.
Key Features
- 1x HDMI connector LCB2K Multimedia Player Specifications Adaptive mode: The LCB2K automatically adjusts the playback window resolution according to the EDID of the LCD display.
- 1x Stereo audio connector The audio sample rate is fixed at 48 kHz.
- 1x USB 3.0 (Type A) port Allows for USB playback, firmware upgrade and storage expansion.
- 1x USB (Type C) port Connects to the control computer for content publishing and screen control.
- 1x Fast Ethernet port Connects the control computer to the device, or connects to a LAN or public network for content publishing and screen control.
- Powerful processing capacity – Quad-core processor @1.3 GHz – Support for decoding of 4K videos – 1 GB of RAM – 16 GB of internal storage
- Flawless playback Support for Playback of 1x 4K video, 2x 1080p videos, 4x 720p, 4x 480p, or 6x 360p videos Notes: – Only the H.264 and H.265/HEVC encoding formats support 1x 4K video.
- All-round control plans – Enables users to publish content and control screens from a computer, mobile phone, or tablet.
LCB2K Specifications
| Input voltage | DC 12 V, 2 A |
|---|---|
| Maximum power consumption | 18 W |
| Storage Capacity | 1 GB |
| Internal storage | 16 GB |
| Operating Environment – Temperature | -20°C to +60°C |
| Operating Environment – Humidity | 0% RH to 80% RH, non-condensing |
| Storage Environment – Temperature | -40°C to +80°C |
| Storage Environment – Humidity | 0% RH to 80% RH, non-condensing |
| Physical Specifications – Dimensions | 123.0 mm × 89.0 mm × 29.5 mm |
| Net weight | 255.4 g |
| Gross weight | 620.8 g |
| Packing Information – Dimensions | 278.0 mm × 63.0 mm × 221.0 mm |
| Maximum Resolution | 1920×1080@60Hz SIM CARD SIM card slot Capable of preventing users from inserting a SIM car |
| Onboard RAM | 1 GB of RAM |
| Model | LCB2K |
| Product Type | LED Media Player |
Specifications drawn from NovaStar’s official LCB2K documentation. Get the full spec sheet & manual →
LCB2K Applications
Application planning for this exact model, based on its documented interfaces and operating limits.
System Integration
Plan the system around this exact model’s documented connectors, loading limits and software requirements.
Fixed Installation
Use the product where its documented power, environment and mounting requirements match the installation.
Event Workflow
Confirm the exact signal formats, capacity and redundancy requirements before assigning it to a live-event system.
Replacement or Expansion
Match the full SKU, hardware variant and compatible system components before replacing or expanding equipment.
LCB2K Setup & Compatibility
Follow the official product documentation for power, signal connections, installation and configuration.
Need a compatibility check? Send us your system details and we’ll confirm the correct control-chain components before you order.
Frequently Asked Questions
What is the LCB2K?
The LCB2K is an LCD multimedia player created by NovaStar. This multimedia player applies to LCD screens in advertising media, digital signage, commercial display and other fields.
What are the key LCB2K specifications?
Input voltage: DC 12 V, 2 A; Maximum power consumption: 18 W; Storage Capacity: 1 GB.
Which document supports these LCB2K specifications?
The technical values above were distilled from LCB2K-LCD-Multimedia-Player-Specifications-V1.2.1.pdf and this product's own catalog record; no other model's specifications were used.
Can you confirm the exact LCB2K configuration before I order?
Yes. Send us your system requirements and our US-based team will check the exact model and compatible components against the available NovaStar documentation.
LCB2K Manual, Datasheet & Firmware
Use the product-specific download pages for LCB2K documents, and keep the download hub bookmarked for firmware and software updates.
- Datasheet / PDF: LCB2K datasheet for the product-specific specification sheet.
- Firmware & software: check the NovaStar download center for current firmware, VMP, NovaLCT and related tools.
Need a specific LCB2K file or compatibility check? Contact us and we will help confirm the correct resource.
