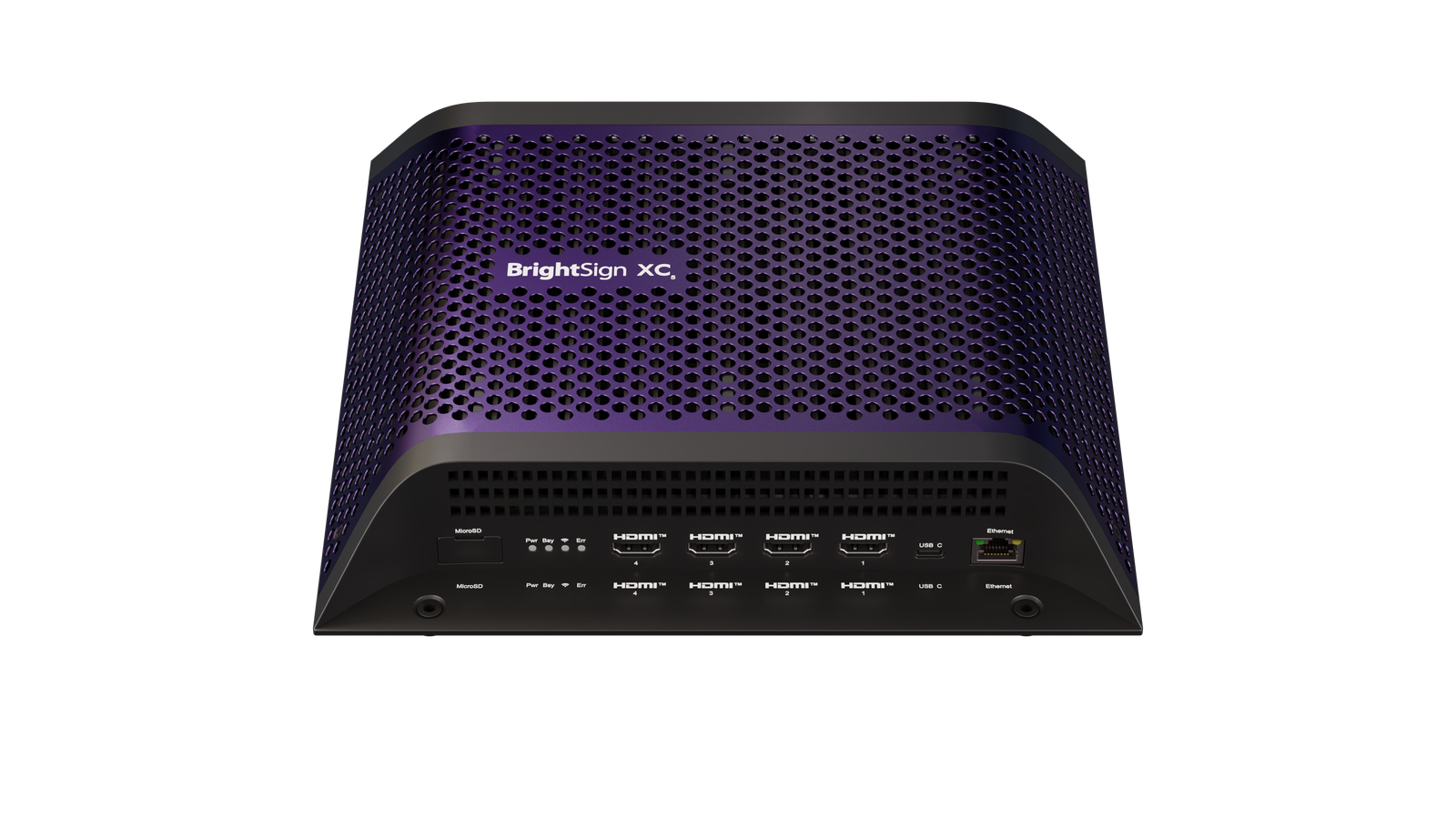

BrightSign XC4055 LED Media Player

BrightSign XC4055 is a multi-output digital signage player for four-output DVLED, video wall, command center and multi-screen signage source playback. Choose the XC4055 when one BrightSign player should feed up to four HDMI outputs for a coordinated display canvas, especially when four outputs reduce the need for multiple players or a general-purpose PC.

What is BrightSign XC4055?

The BrightSign XC4055 is the four-output XC5 player for large multi-screen signage, DVLED source playback, command centers and high-resolution video wall content. It combines the XC family’s PC-class graphics platform with four HDMI outputs, BrightSignOS or Windows IoT options, USB, serial, GPIO, IR, Ethernet and local storage.

BrightSign XC4055 key features

• Four HDMI outputs for coordinated video walls, control rooms, multi-screen retail and DVLED source paths
• XC5 graphics platform with more headroom than XC2055 for heavier HTML, OpenGL and visual workloads
• Single 8K output or multi-output 4K-per-screen planning, depending on presentation layout and downstream hardware
• BrightSignOS or Windows IoT configuration options for projects that need appliance-style playback or a Windows software stack
• USB-A, USB-C, serial, GPIO, IR, Ethernet and local storage for enterprise AV and signage integration

Where the BrightSign XC4055 makes sense

BrightSign XC4055 specifications

Can the BrightSign XC4055 be used with an LED wall?

Yes, but its role is specific: the BrightSign XC4055 is the signage player that supplies the content signal. It stores and plays scheduled media, so a lobby screen, menu board or informational LED display does not need a computer left on-site just to keep content running.

For an LED wall, the BrightSign player’s HDMI output still needs to go into hardware that accepts and processes that signal. The NovaStar control system handles the LED-display work: a video processor or all-in-one controller accepts and scales the HDMI source, sending hardware outputs LED data, and receiving cards map that data to the LED modules. BrightSign handles the playlist, publishing method and playback reliability.

Use XC2055 when two HDMI outputs are enough. XC4055 is the highest multi-output XC5 model in this lineup and should be chosen when four outputs or extra graphics headroom solve a real source-path problem.

BrightSign XC5 model comparison

Start with output resolution and I/O. Those two choices usually decide the right BrightSign model faster than a long feature list.

BrightSign XC4055 datasheet and resources

BrightSign XC4055 FAQ

Why choose BrightSign XC4055 instead of XC2055?

Choose XC4055 when the project needs four HDMI outputs or more graphics headroom from one player. XC2055 is the better fit when two outputs are enough and a smaller source path keeps the project simpler.

Can XC4055 drive four screens from one player?

Yes. XC4055 is the XC5 model for up to four HDMI outputs. Plan the BrightSign presentation around the exact screen count, orientation, resolution and timing before buying the player.

Does XC4055 output four 8K screens?

No. Treat XC4055 as a single-output 8K-capable player or a multi-output player planned around 4K-per-output style workflows, depending on content and downstream hardware. Do not design a four-output project as four independent 8K outputs.

When is XC4055 better than multiple smaller players?

XC4055 is useful when one source should keep timing, publishing and content management together across a larger canvas. Multiple smaller players can still make sense when screens are independent or when redundancy matters more than one-player simplicity.

Can XC4055 run Windows IoT?

XC5 players are offered with BrightSignOS or Windows IoT options depending on configuration. Choose the OS around the software stack, content workflow and support plan the installation actually requires.

Can XC4055 feed a NovaStar LED wall setup?

Yes, as one to four HDMI playback sources into compatible processing hardware. XC4055 handles the source outputs and content; NovaStar processing, sending hardware and receiving cards still handle the LED wall.

Is BrightSign XC4055 covered by a 5-year warranty?

New Series 5 players are eligible for BrightSign's registered 5-year hardware warranty program. Registration and BrightSign warranty terms apply; accessories, removable storage and separately purchased items are handled separately.

Do you offer project pricing for XC4055?

Yes. For video walls, DVLED, command centers, control rooms or reseller orders, send the output plan, target resolution, quantity and destination. We can quote XC4055 around the full project requirement.
