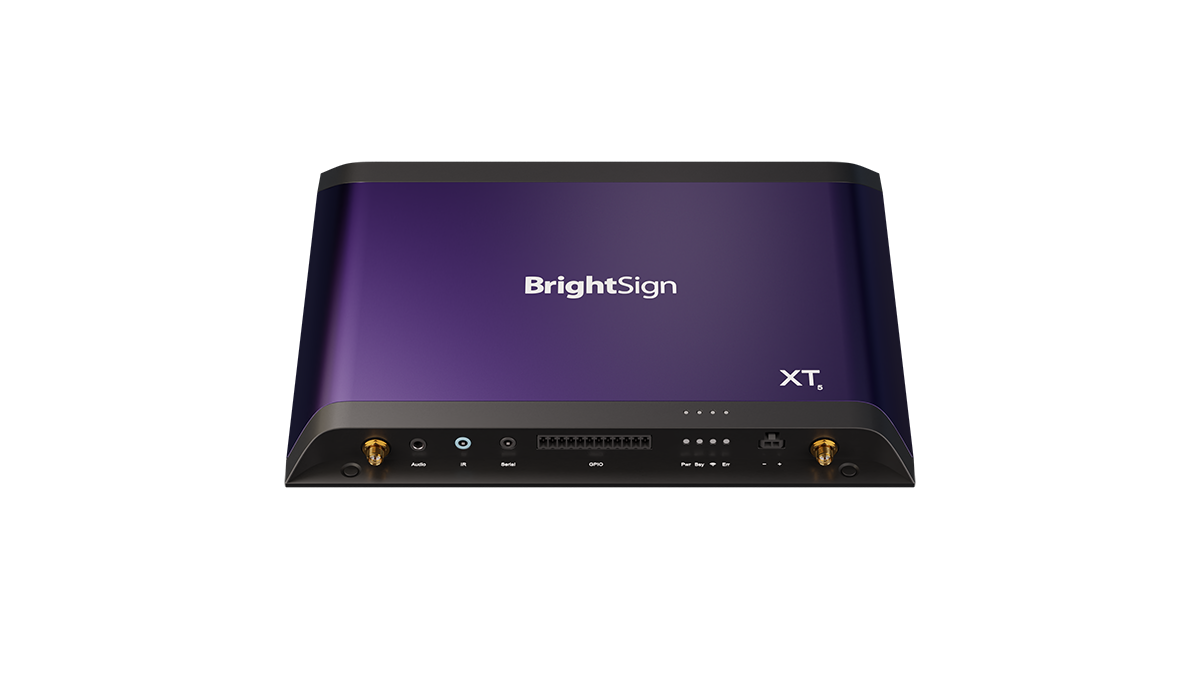

BrightSign XT1145 is an 8K digital signage player for high-performance XT5 signage that needs HDMI input, USB peripherals, serial control and one HDMI output. Choose the XT1145 when the player needs XT5 playback performance plus live HDMI input or expanded control connections, but the installation still only needs one HDMI output.
What is BrightSign XT1145?
The BrightSign XT1145 is the expanded-I/O single-output XT5 player. It combines XT-level 8K/HDR10 playback and advanced graphics with HDMI input, HDMI output, USB-A, USB-C, serial, GPIO, IR, PoE+ Ethernet and local microSD playback for complex signage and installed AV workflows.
BrightSign XT1145 key features
- XT5 8K/HDR10 playback tier for premium media, high-end graphics and demanding signage content
- HDMI input for BrightSign Video In states, live-source moments and source-switching style presentations
- Single HDMI output for feeding a display, processor, scaler or compatible LED control path
- USB-A, USB-C, serial, GPIO and IR for touchscreens, peripherals, AV control and local triggers
- PoE+ capable Ethernet plus microSD playback for managed installations that need reliable local playback
Where the BrightSign XT1145 makes sense
Live-input signage momentBring in a compatible HDMI source for a Video In state, such as a camera feed, event source or local player, inside a BrightSign presentation.
Premium interactive displayUse USB, serial, GPIO or IR when the screen needs touch, control integration or local triggers along with XT-level graphics.
Installed AV source playerPlace XT1145 in AV systems where one high-performance HDMI output and richer control connections are more important than dual output.
LED wall source with input optionFeed compatible processing hardware while keeping HDMI input available upstream for live-source or source-switching content designs.
BrightSign XT1145 specifications
| Series |
XT5 |
| Product type |
8K Digital Signage Player |
| Price |
$1,060 |
Can the BrightSign XT1145 be used with an LED wall?
Yes, but its role is specific: the BrightSign XT1145 is the signage player that supplies the content signal. It stores and plays scheduled media, so a lobby screen, menu board or informational LED display does not need a computer left on-site just to keep content running.
For an LED wall, the BrightSign player’s HDMI output still needs to go into hardware that accepts and processes that signal. The NovaStar control system handles the LED-display work: a video processor or all-in-one controller accepts and scales the HDMI source, sending hardware outputs LED data, and receiving cards map that data to the LED modules. BrightSign handles the playlist, publishing method and playback reliability.
Stay with XT245 if the player only needs one output and standard I/O. Move to XT2145 when one BrightSign player must provide two HDMI outputs, or to XC2055/XC4055 when the project needs PC-class multi-output playback.
BrightSign XT5 model comparison
Start with output resolution and I/O. Those two choices usually decide the right BrightSign model faster than a long feature list.
| Model |
Best for |
Output tier |
I/O level |
Choose it when |
| XT245 |
8K playback with standard I/O |
One HDMI 2.1a |
Standard I/O |
You need 8K/HDR10 playback without HDMI input. |
| XT1145 |
8K playback plus live/input workflows |
One HDMI 2.1a |
Expanded I/O |
You need HDMI input, USB, serial and heavier graphics. |
| XT2145 |
Two-screen 8K-class playback |
Two HDMI outputs |
Multiplex I/O |
You need one player to drive two screens or two coordinated outputs. |
BrightSign XT1145 datasheet and resources
BrightSign XT1145 datasheetOfficial BrightSign PDF for specs, interfaces and planning.Download datasheet
BrightSign XT1145 FAQ
Why choose BrightSign XT1145 instead of XT245?
Choose XT1145 when the project needs XT performance plus HDMI input, USB peripherals or serial control. XT245 is cleaner and lower-cost when one HDMI output and standard I/O are enough.
What is the HDMI input on XT1145 used for?
The HDMI input can be used in BrightSign presentations for Video In states, live-source moments and source-switching style layouts. It should be planned as part of the BrightSign content workflow, not treated as a generic lossless passthrough box.
Does XT1145 support USB and serial devices?
Yes. XT1145 includes expanded I/O with USB-A, USB-C and serial, making it a better fit than XT245 for touchscreens, peripherals, AV devices and installed control systems.
When should I choose XT2145 instead of XT1145?
Choose XT2145 when one player must drive two HDMI outputs or two coordinated screens. XT1145 is the right XT model when the installation needs HDMI input and expanded I/O but only one output.
Does XT1145 support 8K and HDR10 playback?
Yes. XT1145 belongs to the XT5 performance tier for 8K video decoding, HDR10 playback and stronger graphics. Confirm the content format, output plan and downstream display or processor limits before ordering.
Can XT1145 be used with a NovaStar LED wall setup?
Yes, as a high-performance HDMI playback source into compatible processing hardware. The HDMI input and control connections stay on the source side; NovaStar processing, sending hardware and receiving cards still handle the LED wall.
Is BrightSign XT1145 covered by a 5-year warranty?
New Series 5 players are eligible for BrightSign's registered 5-year hardware warranty program. Registration and BrightSign warranty terms apply; accessories, removable storage and separately purchased items are handled separately.
Do you offer bulk or reseller pricing for XT1145?
Yes. For premium signage, installed AV, LED source projects or reseller stock, send the quantity, destination and required input/control workflow. We can quote XT1145 as a project or volume order.
