What is the LCB4K?
The LCB4K is an LCD multimedia player created by NovaStar. This multimedia player applies to LCD and LED displays in advertising media, digital signage, commercial display and other fields.
LCB4K Overview
The LCB4K is an LCD multimedia player created by NovaStar. This multimedia player applies to LCD and LED displays in advertising media, digital signage, commercial display and other fields.
LED Control Depot provides US-based presales support for the LCB4K and can confirm model-specific compatibility before ordering.
Key Features

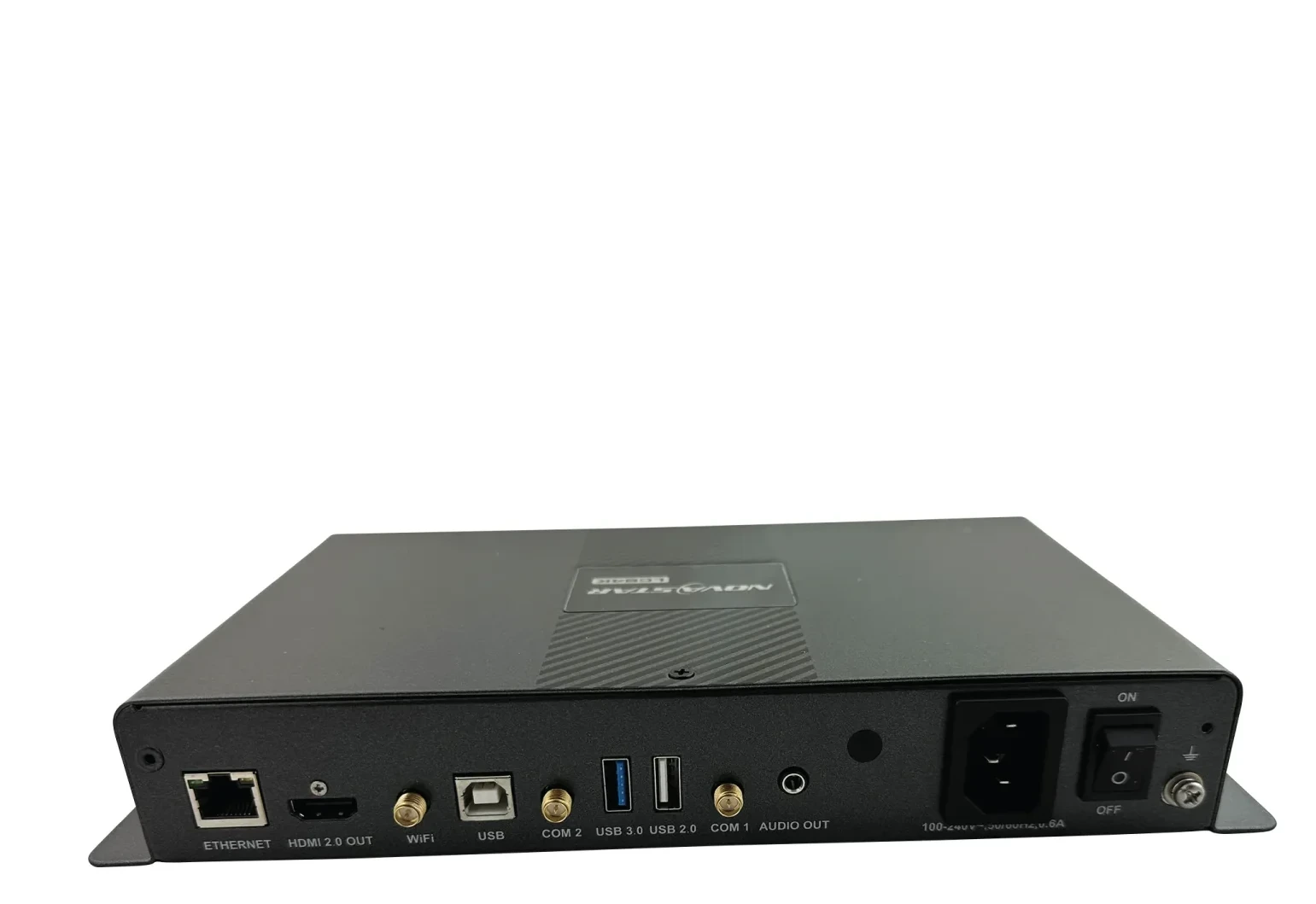

- 1x HDMI 2.0 connector LCB4K LCD Multimedia Player Specifications – Adaptive mode: The LCB4Kautomatically adjusts the playback window resolution according to the EDID of the LCD display.
- 1x Stereo audio connector The audio sample rate is fixed at 48 kHz.
- 1x USB 3.0 (Type A) port allowing for USB playback, firmware upgrade and storage expansion
- 1x USB 2.0 (Type A) port allowing for USB playback, firmware upgrade, storage expansion and cascading sending devices for control
- 1x USB (Type B) port connecting to the control computer for content publishing and screen control
- 1x Gigabit Ethernet port connecting to the control computer, a LAN or public network for content publishing and screen control Performance
- Powerful processing capacity – Quad-core ARM A55 processor @1.8 GHz – Support for 4K video decoding – 2 GB of onboard RAM – 32 GB of internal storage
- Flawless playback Support for playback of 2x 4K, 5x 1080p, 5x 720p, 8x 480p, or 10x 360p videos Note: Videos with resolutions between 2K and 4K will be converted into 4K videos.
LCB4K Specifications
| Power supply | 100-240 V~, 50/60 Hz, 0.6 A |
|---|---|
| Maximum power consumption | 15 W |
| Storage Space | 2 GB |
| Internal storage | 32 GB |
| Operating – Temperature | -20°C to +60°C |
| Operating – Humidity | 0% RH to 80% RH, non-condensing |
| Storage – Temperature | -40°C to +80°C |
| Environment – Humidity | 0% RH to 80% RH, non-condensing |
| Physical – Dimensions | 274.3 mm × 139.0 mm × 40.0 mm |
| Net weight | 1.1 kg |
| Gross weight | 1.7 kg |
| Packing – Dimensions | 386.0 mm × 110.0 mm × 285.0 mm |
| IP Rating | IP20 Please prevent the product from water intrusion and do not wet or wash the product |
| System Software | • Android 11 operating system software • Android terminal application software |
| Certifications | CQC, SRRC, CE, WPC |
| Maximum Width | 512~4096 pixels (512×512@60Hz~4096×2160@60Hz) – Ma |
Specifications drawn from NovaStar’s official LCB4K documentation. Get the full spec sheet & manual →
LCB4K Applications
Application planning for this exact model, based on its documented interfaces and operating limits.
System Integration
Plan the system around this exact model’s documented connectors, loading limits and software requirements.
Fixed Installation
Use the product where its documented power, environment and mounting requirements match the installation.
Event Workflow
Confirm the exact signal formats, capacity and redundancy requirements before assigning it to a live-event system.
Replacement or Expansion
Match the full SKU, hardware variant and compatible system components before replacing or expanding equipment.
LCB4K Setup & Compatibility
Follow the official product documentation for power, signal connections, installation and configuration.
Need a compatibility check? Send us your system details and we’ll confirm the correct control-chain components before you order.
Frequently Asked Questions
What is the LCB4K?
The LCB4K is an LCD multimedia player created by NovaStar. This multimedia player applies to LCD and LED displays in advertising media, digital signage, commercial display and other fields.
What are the key LCB4K specifications?
Power supply: 100-240 V~, 50/60 Hz, 0.6 A; Maximum power consumption: 15 W; Storage Space: 2 GB.
Which document supports these LCB4K specifications?
The technical values above were distilled from LCB4K-LCD-Multimedia-Player-Specifications-V1.2.4.pdf and this product's own catalog record; no other model's specifications were used.
Can you confirm the exact LCB4K configuration before I order?
Yes. Send us your system requirements and our US-based team will check the exact model and compatible components against the available NovaStar documentation.
LCB4K Documentation & Support
Use the product-specific documents listed for the LCB4K; document availability varies by model.
- LCB4K-LCD-Multimedia-Player-Specifications-V1.2.4.pdf (product-specific source for the specifications above)
Need a specific LCB4K document? Contact us and we’ll help locate the correct file for this exact model.
