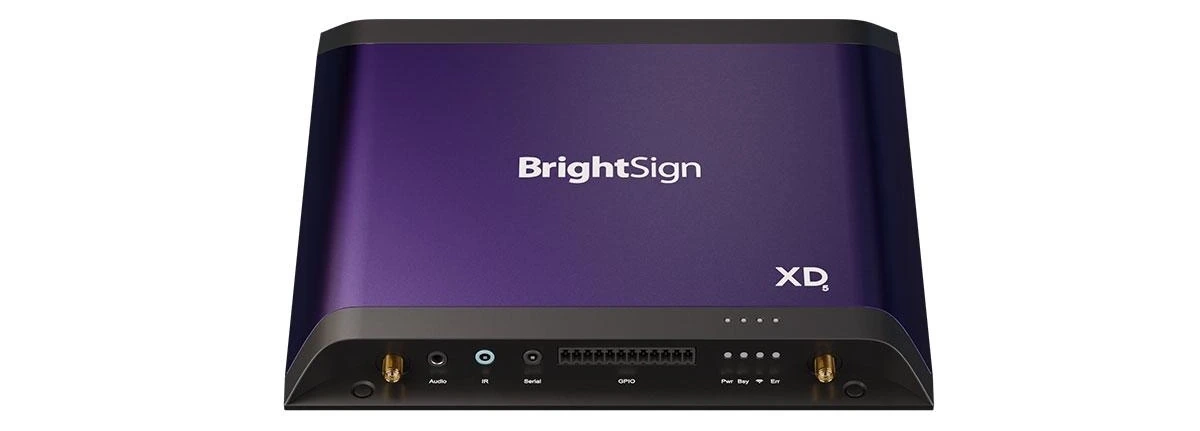

BrightSign XD1035 LED Media Player

BrightSign XD1035 is a digital signage player for interactive 4K signage that needs PoE+, USB peripherals, serial control and stronger WebGL. Choose the XD1035 when the player must run advanced 4K signage while also connecting to touchscreens, USB devices, serial-controlled AV gear or local control inputs.

What is BrightSign XD1035?

The BrightSign XD1035 is the expanded-I/O XD5 player for advanced interactive 4K signage. It combines XD-level graphics and PoE-capable networking with USB-A, USB-C, serial, GPIO, IR and local playback, making it a stronger fit for touchscreens, showrooms, kiosks and installed AV systems than the standard-I/O XD235.

BrightSign XD1035 key features

• 4K HDMI playback with XD5 graphics performance for advanced HTML, WebGL and data-driven signage
• USB-A and USB-C for supported touchscreens, peripherals and interactive installation hardware
• Serial, GPIO and IR for displays, AV control paths, buttons, sensors and local trigger events
• PoE/PoE+ capable Ethernet for cleaner wiring where the network infrastructure can provide power
• microSD playback with an M.2 SSD storage option for larger local media libraries and interactive content

Where the BrightSign XD1035 makes sense

BrightSign XD1035 specifications

Can the BrightSign XD1035 be used with an LED wall?

Yes, but its role is specific: the BrightSign XD1035 is the signage player that supplies the content signal. It stores and plays scheduled media, so a lobby screen, menu board or informational LED display does not need a computer left on-site just to keep content running.

For an LED wall, the BrightSign player’s HDMI output still needs to go into hardware that accepts and processes that signal. The NovaStar control system handles the LED-display work: a video processor or all-in-one controller accepts and scales the HDMI source, sending hardware outputs LED data, and receiving cards map that data to the LED modules. BrightSign handles the playlist, publishing method and playback reliability.

Stay with XD235 if PoE+, 4K playback and standard I/O are enough. Move to XT1145 when the project needs 8K/HDR10 playback, HDMI input or a higher-performance XT source.

BrightSign XD5 model comparison

Start with output resolution and I/O. Those two choices usually decide the right BrightSign model faster than a long feature list.

BrightSign XD1035 datasheet and resources

BrightSign XD1035 FAQ

Why choose BrightSign XD1035 instead of XD235?

Choose XD1035 when standard I/O is not enough. XD235 is strong for PoE-powered 4K signage; XD1035 adds USB-A, USB-C and serial, which matter for touchscreens, peripherals and installed AV control.

Can XD1035 be used for touchscreen signage?

Yes, when the touch display and BrightSign content are designed for supported USB touch interaction. XD1035 is the XD5 model to consider for interactive directories, kiosks and showroom screens.

What is USB-C used for on XD1035?

USB-C expands the connection options for supported peripherals and interactive hardware. For exact accessory compatibility, confirm the device requirements before buying the player for a kiosk or control application.

Does XD1035 support serial control?

Yes. The serial port is useful when the player needs to coordinate with compatible displays, switchers, control processors or installed AV devices. This is one of the main reasons to choose XD1035 over XD235.

Does XD1035 support PoE+?

Yes. XD1035 is PoE-capable, which can simplify wiring when the network switch or injector provides the correct power budget. Confirm the power plan before designing the final installation.

Can XD1035 feed a NovaStar LED wall setup?

Yes, as a 4K HDMI playback source into compatible processing hardware. XD1035 can handle interactive content and local control before the HDMI signal reaches the processor; NovaStar hardware still handles the LED wall processing and receiving-card path.

Is BrightSign XD1035 covered by a 5-year warranty?

New Series 5 players are eligible for BrightSign's registered 5-year hardware warranty program. Registration and BrightSign warranty terms apply; accessories, removable storage and separately purchased items are handled separately.

Do you offer bulk or reseller pricing for XD1035?

Yes. For interactive signage rollouts, kiosks, campuses, retail networks or reseller stock, send the quantity, destination and project timeline. We can quote XD1035 as a volume or project order.
