What is the NovaStar DH418 receiving card?
The NovaStar DH418 is an eight-HUB75E receiving card for an LED cabinet that already uses this board and connector layout. It receives the image data from the controller, then sends the correct part of that image to the cabinet’s LED modules. It is usually bought as an exact spare, not as a general upgrade for another receiving-card family.
That distinction matters. A card can have a similar size or pixel number and still put data into the wrong module positions, leaving a cabinet mirrored, scrambled or black. For an existing wall, match the DH418 label, the eight HUB75E ribbons, the mounting pattern and the saved cabinet file before ordering.
For a new cabinet, use the DH418 only after the cabinet maker confirms the HUB75E arrangement, driver IC and scan method. If those parts of the cabinet design are different, choose the card specified for that cabinet rather than trying to adapt an unrelated board.
DH418 key features
Eight HUB75E outputs for the cabinet it matches
The DH418 has eight standard HUB75E connectors for the module ribbons. That is useful when replacing the same card in an installed cabinet because the ribbon locations are already known. It does not mean that every eight-output card is interchangeable: the module order and cabinet wiring still have to match.
Tools that help isolate one bad cabinet
Mapping can show the receiving-card number and Ethernet-port information on the cabinet. Temperature, voltage and Ethernet bit-error checks can then help separate a cabinet, cable or power problem before good modules are replaced by mistake. NovaLCT V5.2.0 or later is required for the documented bit-error and file-readback functions.
A better chance of a clean repair result
Pixel-level brightness and chroma calibration, plus quick dark- or bright-line adjustment, can help a repaired cabinet blend back into the wall. The card needs the right cabinet data and compatible modules; it cannot correct a wrong ribbon order or turn a different LED module into the original one.
Protection only when the system is built for it
The DH418 can keep a stored image for startup or a lost source, and it supports loop backup when the controller and cabinets are wired with main and backup Ethernet paths. Those are useful safeguards in a compatible system, but buying a replacement card alone does not add a backup route to a wall that was not wired for one.
NovaStar DH418 specifications
Use these figures to identify the correct board. The headline resolution and the usable loading table are not the same thing, so the load condition is shown separately in the next section.
| Cabinet interface | 8 × standard HUB75E connectors |
|---|---|
| Introduction maximum | 256 × 256 pixels at 60 Hz |
| Module data | Up to 16 groups of parallel RGB data |
| Input voltage / power | DC 3.8 V to 5.5 V / 2.5 W rated |
| Dimensions | 95.5 × 109.1 × 17.9 mm |
| Operating environment | −20°C to +70°C; 10% to 90% RH, non-condensing |

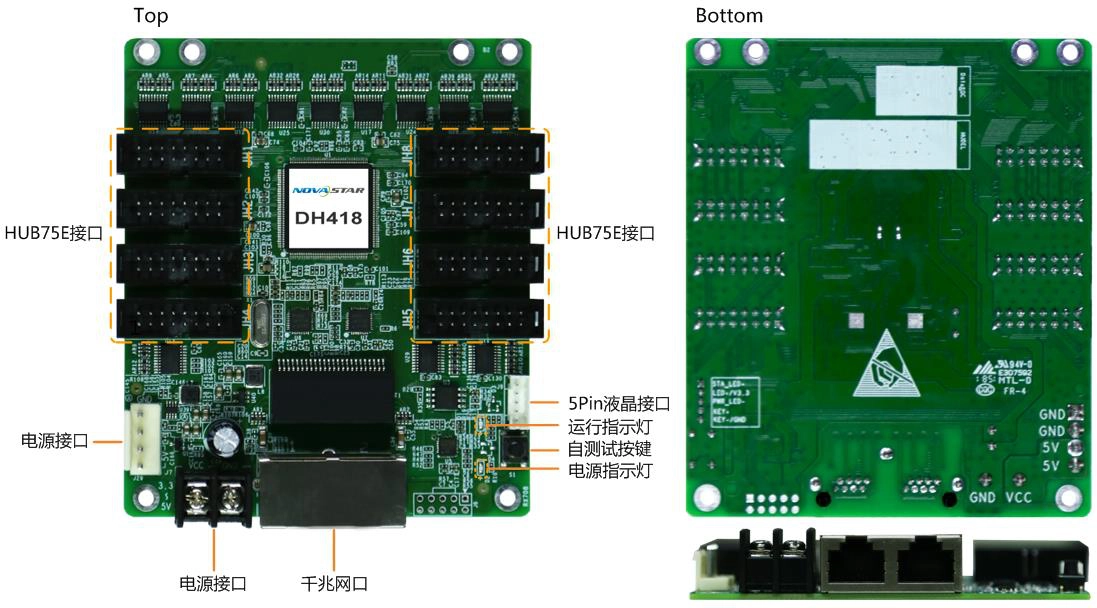

DH418 HUB75E connectors and cabinet fit
The eight HUB75E ribbons are the first thing to confirm on a DH418 order. They carry the module data inside the cabinet, so their connector positions and sequence are part of the cabinet’s map. A board that fits the mounting holes but has a different connector layout can still send the image to the wrong module rows.
For a replacement, compare the old card’s full label, all eight ribbon locations, the board dimensions and the cabinet’s power connection. If the failed card is gone, provide clear inside-cabinet photos and the saved configuration file before a replacement is selected. It is much cheaper to confirm the match than to rewire a cabinet on site.
DH418 loading capacity for PWM and common driver ICs
The DH418 introduction names a maximum of 256 × 256 at 60 Hz, but the official loading-capacity section is the safer number for cabinet planning. It lists 192 × 256 for PWM driver ICs and 176 × 256 for common driver ICs. Do not quote 256 × 256 as a promise that one card will run every cabinet.
| Cabinet electronics | Official loading capacity | Buying consequence |
|---|---|---|
| PWM driver ICs | 192 × 256 pixels | A cabinet beyond that load needs another card or a different cabinet design. |
| Common driver ICs | 176 × 256 pixels | The lower ceiling can rule out a one-card layout even when the cabinet is under 256 × 256 overall. |
Capacity is only the second filter. The DH418 also has a 16-group parallel-RGB limit, so the driver IC, scan method and module data path must agree with the cabinet. If you are near either ceiling, confirm the design before ordering rather than using a total-pixel estimate.
Replacing a DH418 receiving card without losing the cabinet map
Before removing a working DH418, use NovaLCT to read back the receiving-card program and the cabinet configuration parameters. The program tells the card how to work with the cabinet electronics. The cabinet file stores the scan, wiring and pixel map. One does not replace the other.
Then match the old card label, HUB75E ribbons, power connection and cabinet layout. Test the saved configuration on one cabinet before applying it across the wall. This prevents the familiar replacement surprise: the cabinet powers up, but its image is scrambled or its brightness no longer matches the wall.
If you are repairing an existing DH418 cabinet, order the same model once those details match. If the cabinet needs more load than the documented DH418 limits, do not select a different DH model by resolution alone; have its connector and cabinet-data requirements checked first.
DH418 datasheet, firmware and NovaLCT
Use the datasheet for board identity and capacity conditions, then use NovaLCT to save a working cabinet before a replacement. No exact DH418 firmware package was verified for this page, so a guessed file is not presented as a download. A newer package is not automatically safer for a cabinet that already works.
NovaStar DH418 FAQ
What does the DH418 receiving card do?
It receives the controller’s assigned image data and sends it to the LED modules in a matching cabinet through eight HUB75E connectors.
Does DH418 use HUB75E connectors?
Yes. The official V1.0.4 specification identifies eight standard HUB75E connectors. Their positions and ribbon order must match the cabinet.
What is DH418 loading capacity?
The safer planning figures in the official loading table are 192 × 256 for PWM driver ICs and 176 × 256 for common driver ICs. Confirm the driver IC, scan and 16-group data path as well.
Can another receiving card replace DH418?
Not automatically. Match the DH418 label, HUB75E layout, module ribbons, dimensions, power connection and saved cabinet parameters before changing models.
What should I save before replacing a DH418?
Save both the working receiving-card program and cabinet configuration parameters in NovaLCT. They preserve different parts of the cabinet setup.
Can DH418 help locate a cabinet fault?
In a compatible system, Mapping plus temperature, voltage and Ethernet bit-error checks can help identify the affected cabinet or signal path before parts are swapped.
Does a replacement DH418 create loop backup?
No. Loop backup works only when the controller and cabinet run already have the main and backup Ethernet paths wired.
Can I request DH418 volume pricing or Net 30 terms?
Yes. Send the cabinet count and spare quantity for volume pricing or eligible Net 30 terms. Include the cabinet model when the order is a replacement.
How is DH418 warranty coverage handled?
Cards supplied through our authorized US NovaStar channel include three years of serial-tracked manufacturer coverage.
